Backsense® Radar On-Screen Display
Radar detection and camera vision combined on one in-cab screen. Built for the demanding safety challenges of construction and mining vehicles.
One clear, trusted view
Instead of separate radar and camera displays competing for the driver's attention, the On-Screen Display brings both detection technologies into a single view, reducing cognitive load and supporting safer, more confident decisions in high-risk environments.
Unified warning display

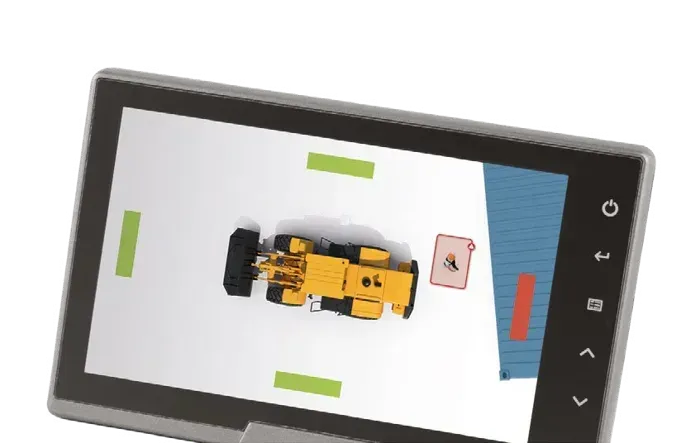

Radar alerts are overlaid directly on the camera image, so the driver sees the hazard and its location at a glance.
Reduces in-cab distraction
Fewer screens means less to monitor. Critical safety information is consolidated in one place.
Built for construction and mining
IP69K radar sensors and a −40 to +85 °C operating range for the harshest site conditions.
5-stage audible & visual alerts
Graduated warnings tell the driver not just that something is there, but how close it is.
Backeye®360 compatible
Works with Brigade's Backeye®360 camera system (360° view only) for complete surround awareness.
AI pedestrian detection ready
Compatible with AI HFR camera systems to improve pedestrian detection performance.
How it works
Radar sensors scan the danger zone
77 GHz Backsense® radar detects obstacles within a programmable danger zone around the vehicle.
Cameras provide the visual
Up to three AHD or CVBS cameras feed the OSD radar ECU.
The driver sees one combined view
Detection zones and warnings are overlaid on screen, with audible alerts that intensify as an object gets closer.
Adaptive Detection upgrade
Add the optional GPS module (MDR-ANT-GPS-03) and the detection area adjusts automatically with vehicle speed, helping maintain appropriate braking distances as operating conditions change.
Technical specifications
Performance
| Supply voltage | 12–24 Vdc |
| Detection length | Up to 60 m (minimum programmable distance 3 m) |
| Detection width | 2 - 16 m |
| Warnings | 5-stage audible and visual, overlaid on in-cab display |
| Camera inputs | 3 × AHD or CVBS |
| Trigger inputs / outputs | 3 / 3 |
| Radar sensors | Up to 4 |
Physical & environmental
| Sensor size (W×H×D) | 160 × 100 × 40 mm |
| OSD ECU size (W×H×D) | 195 × 120 × 35 mm |
| Radar sensor rating | IP69K |
| OSD ECU rating | IP30 (in-cab) |
| Operating temperature | −40 to +85 °C |
| Warranty | 3 years |
What's in the box
- 1 × OSD Radar ECU BS-OSD-H43
- 1 × Radar sensor BS-9100
- 1 × 9 m extension cable BS-09DCX
- 2 × Network terminator BS-00NT
- 2 × Network Y cable BS-00NYC
Approvals
- CE marked
- E-marked, UNECE R10 compliant
- FCC and IC approved
Accessories & extras
Expand the system with additional radar sensors, adapters and cabling. Ask us which combination suits your vehicle.
To add an additional radar sensor
| Part no. | Model | Description |
|---|---|---|
| 6351 | BS-9100 | Backsense® 77 GHz CAN object detection radar |
| 5270 | BS-00NYC | Network Y cable for 9100 series radar |
Adapters
| Part no. | Model | Description |
|---|---|---|
| 1983 | AC-006 | Select camera to OSD ECU |
| 2094 | AC-014 | OSD ECU to Select monitor |
To add an additional radar sensor
| Part no. | Model | Description |
|---|---|---|
| 6624 | MDR-ANT-GPS-03 | GPS module for Adaptive Detection |
| 7190 | BKT-023 | Adjustable bracket for BS-9100, 8100 & 7100 |
| 5272 / 4550 / 4551 | BS-02/05/09DCX | 2 m, 5 m and 9 m extension cables |
| 4975 | BS-25DCSX | 25 m extension cable |
| 5291 | BS-00NT | 120 Ω network terminator for 9100 series radar |
| 1346 | CT-470 | Constant tone external alarm, 102 dB |
